Archive for the ‘Maker Projects’ Category

Maker Faire Bay Area 2016   Leave a comment

Not Your Grandpa’s Ham Radio 2016

Wayne Yoshida Technical Writer Maker Faire Ribbon Win

Update

Not Your Grandpa’s Ham Radio Wins ‘Best in Class’ Ribbon

Maker Faire Bay Area was extra-special for us this year: We won a ribbon for “Best in Class.”

Maker Faire Hq. explains there are two ribbon categories: a blue ribbon for best in show, and a red ribbon for best in class. The red ribbons are also used to show the Maker has an educational element.

This red ribbon is an excellent victory, because the Maker Faire staff recognizes for our mission statement:

To show people what today’s ham radio operators are doing with the newest technology, and to change the image of ham radio, making it both contemporary and chic in a hi-tech way. We also want to emphasize how ham radio can be used for science and technology education and a possible career path for youngsters.

Our projects demonstrate how ham radio technology changes with the times, yet still includes both past and present to accomplish one thing: Creating ways to communicate voice and data over the ether, without wires.

Maker Faire Hq. keeps track of Makers as they (we) win ribbons.

Notice several Makers have multiple ribbons. Now we have an additional Maker Faire goal: We need to win a ribbon each year.

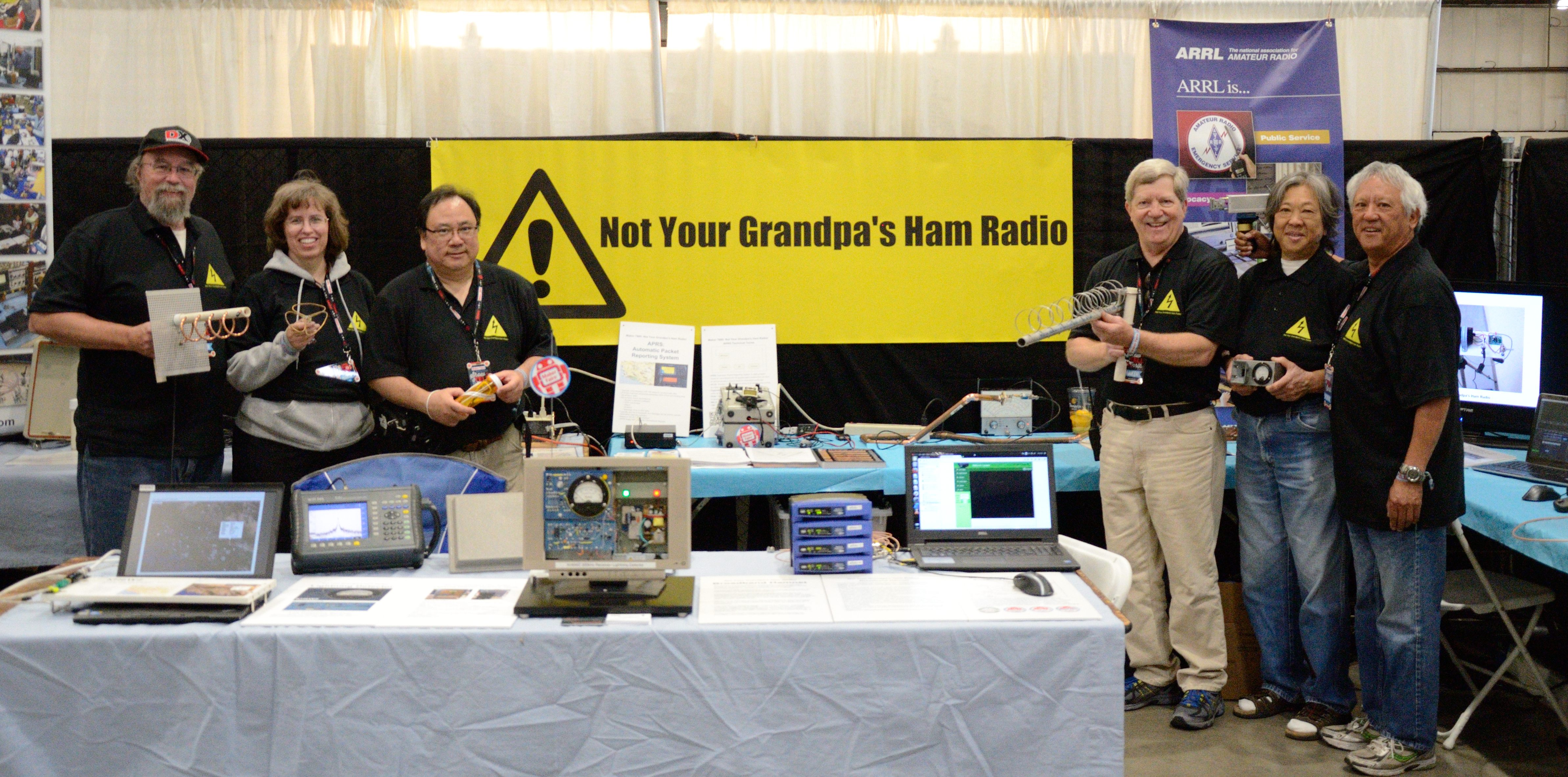

Maker Faire Bay Area Team 2016

Bay Area Maker Faire 2016 Team

Left to right: Dennis Kidder W6DQ, Lisa Gibbons KF6QNG, Wayne Yoshida KH6WZ, Marty Woll N6VI, Patricia Yee, Brian Yee W6BY. Not pictured: Joel Wilhite KD6W, Victor Frank K6FV and Paul Zander AA6PZ. The new polo shirts made by Dennis gave booth staff a professional look. Photo by Dennis Kidder.

A Setup Day Tradition and Treat – Gerard’s Paella

wayne yoshida hungry Makers for paella

Hungry Makers ready for paella and various beverages after setting up their displays and activities.

Gerards Paella 2016

Volunteers scoop and serve paella to the Makers after Maker Faire Bay Area setup day.

wayne yoshida Gerard and Tom

Gerard and his nephew Tom as the paella feast winds down.

This is a tradition at the Maker Faire Bay Area: Gerard’s Paella. Gerard Nebesky trucks in his crew and giant paella pans, which are about 20 feet in diameter. Gerard feeds over 2500 hungry Makers on Friday evening. A great big Thank You goes out to Gerard and his Maker Faire crew!

Here’s a quick video of the paella feast at the 2014 Bay Area Maker Faire.



New Projects

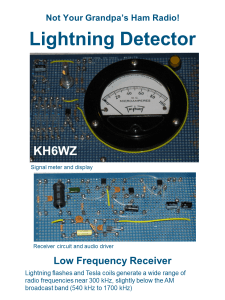

Lightning Detector, Low Frequency (300 kHz) Receiver

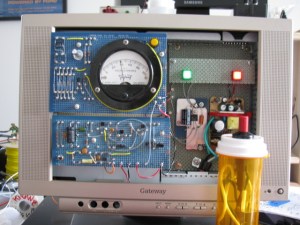

wayne yoshida technical writer lightning detector

The completed lightning detector-300 kHz receiver completed a few nights before the Maker Faire. On the right is the “lightning simulator” – a piezo BBQ striker in a plastic pill bottle.

The lightning detector-300 kHz receiver is built into a broken LCD TV cabinet. Originally, I thought I could re-use the power supply, infrared remote control and audio amplifier. Unfortunately, the TV is built with a small number of ICs with multiple functions. The power supply performed strangely when I probed around to map out the output voltages. Since I was on a tight schedule, I gutted the unit, and kept only the speakers.
Lightning flashes and Tesla coils generate a wide range of radio frequencies near 300 kHz, slightly below the AM broadcast band (540 kHz to 1700 kHz). The electrical impulses can be perceived as “noise” or “static” in a radio receiver.

The Lightning Detector is a “resonant tank circuit” which detects the electrical impulses, amplifies them so the noise can be heard on a speaker, seen on the yellow LED and moves the needle on the meter.

A lightning simulator is used to test or demonstrate the unit in action when no storms are in the area. It is a low frequency, low level oscillator. Another way to simulate lightning is to use a piezo electric striker, like the ones used in some cigarette lighters and gas barbecue starters.

Information on this circuit comes from Charles Wenzel’s Technical Library (TechLib). There are a lot of interesting projects and includes a gallery of readers’ projects.

Wayne Yoshida Technical Writer

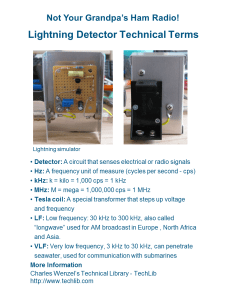

Wayne Yoshida KH6WZ Technical Writer

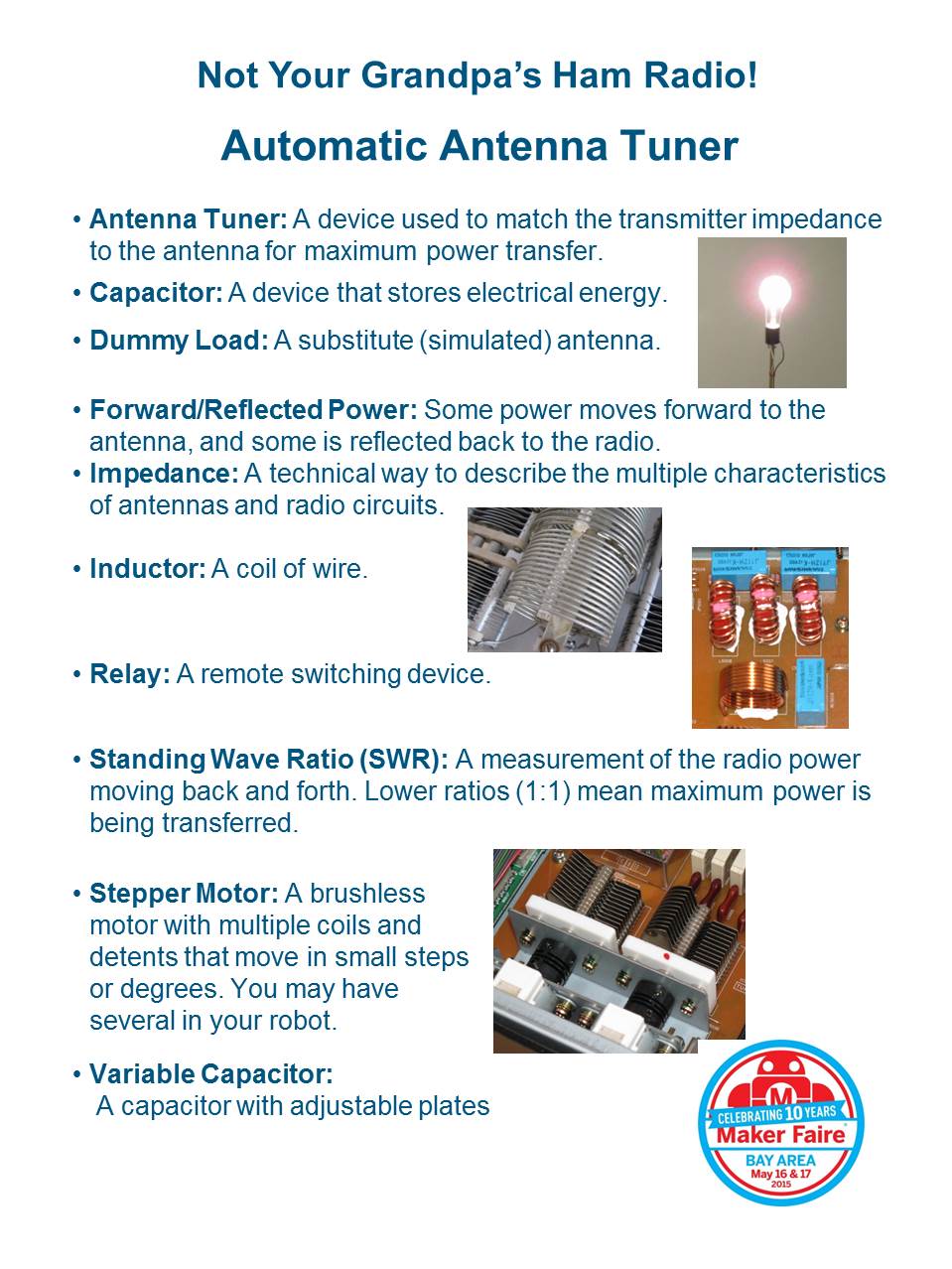

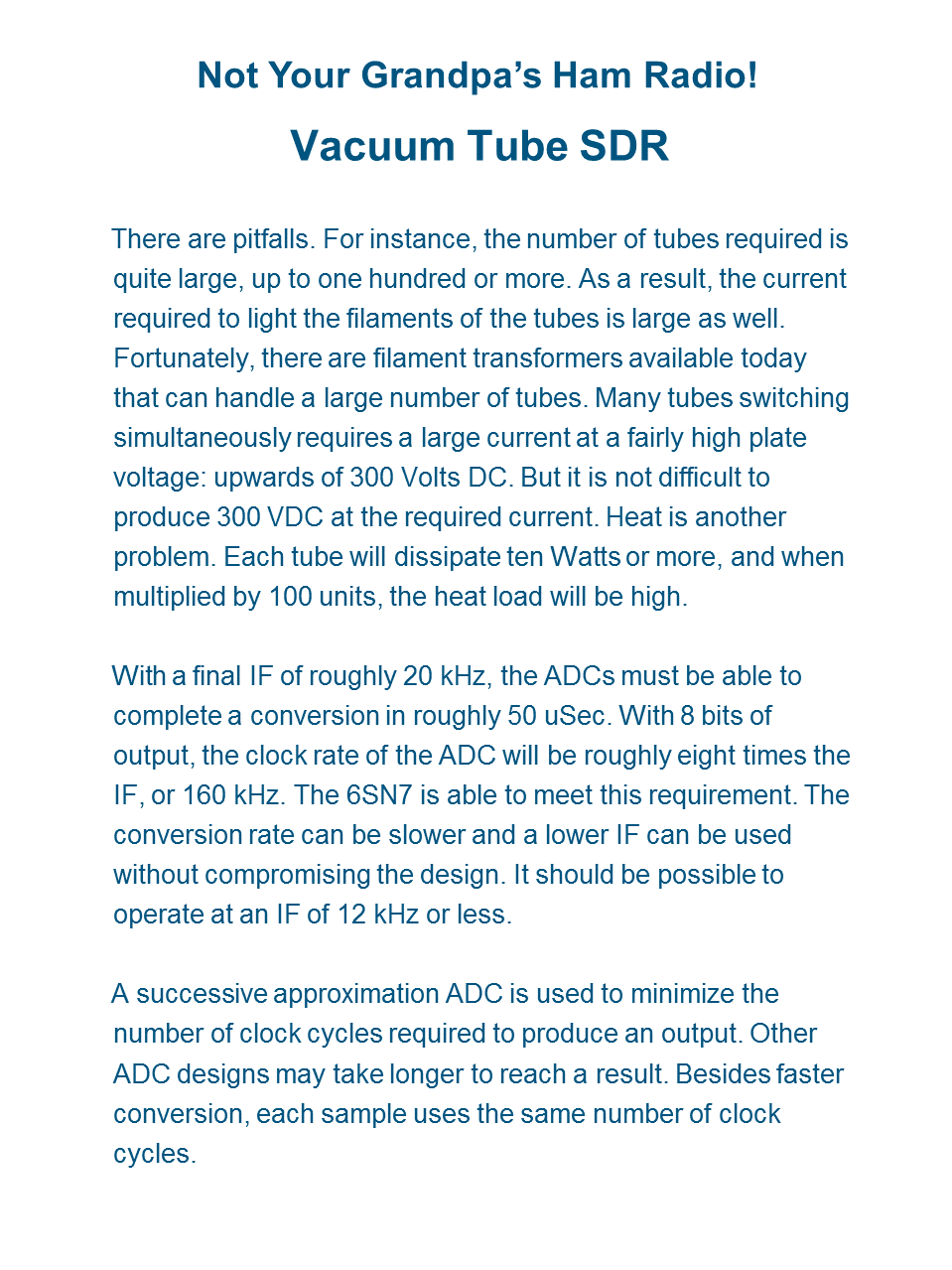

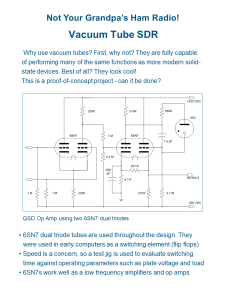

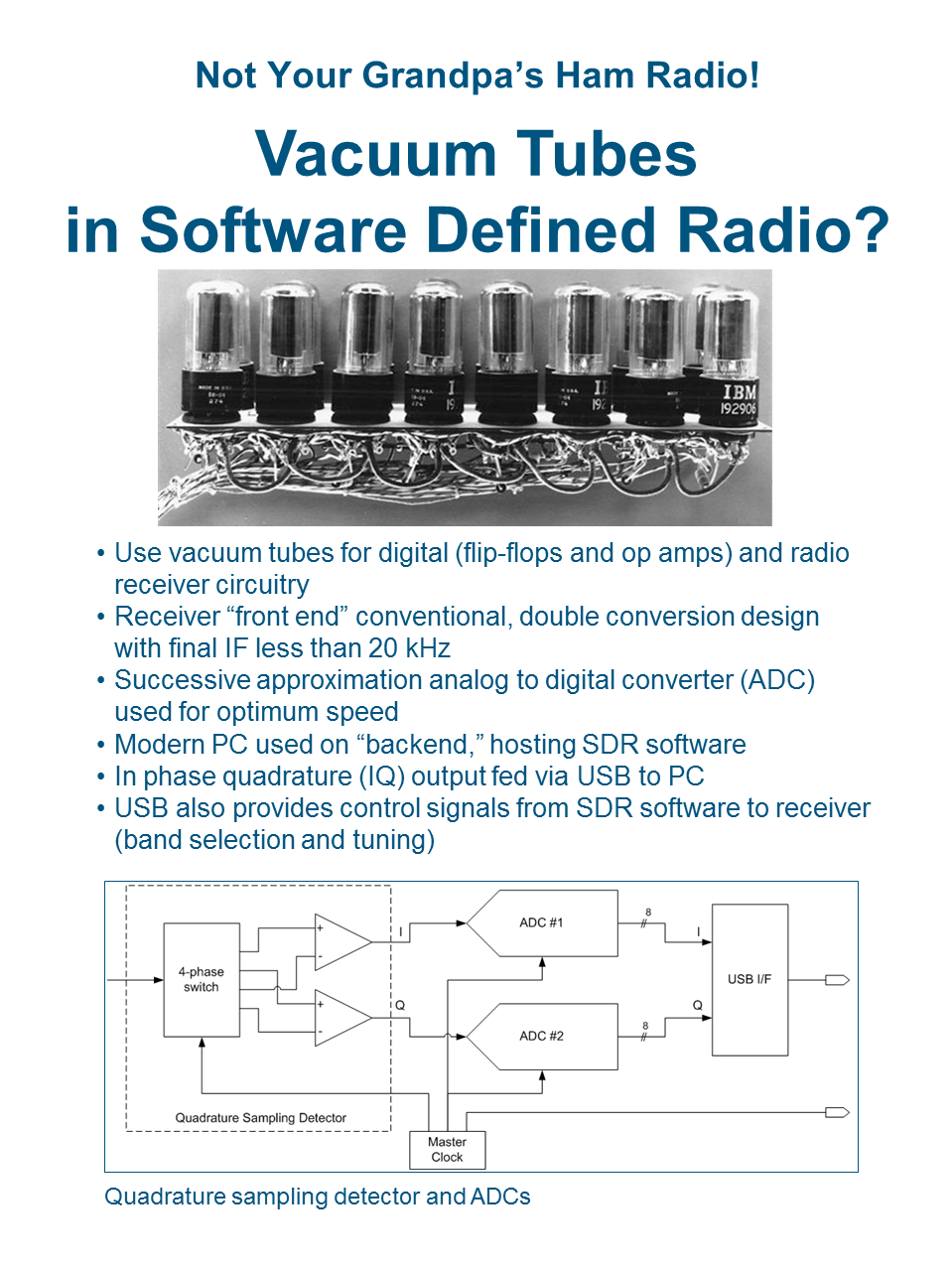

A Software Defined Radio – Made with Vacuum Tubes
A what made with what?

This is an interesting mix of old and new. Dennis Kidder, W6DQ, came up with this idea. Vacuum tubes are fully capable of performing many of the same functions as modern solid-state devices.

Dennis says, “The best part of using tubes in a project — they look really cool!”

Wayne Yoshida Technical Writer



Wayne Yoshida Technical Writer



Wayne Yoshida Technical Writer



Wayne Yoshida Technical Writer



24 GHz Beacon

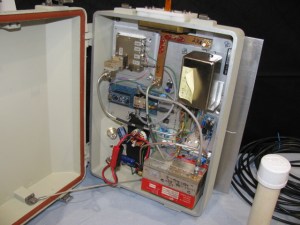

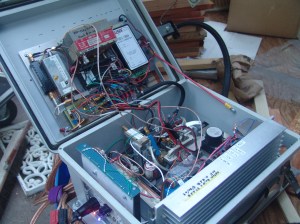

24 GHz beacon by W6BY wayne yoshida photo

Brian Yee, W6BY, brought his Amateur radio beacon. A beacon is a one-way radio transmitters usually used as “propagation indicator” to help see how signals are traveling through the air. They can also be used as a signal source or reference to measure frequency, calibrate radio receivers and test antennas. Brian’s beacon operates on the 24 GHz band, and is made with modified microwave telecommunications sub-assemblies. An Arduino Nano is used as the beacon identifier. It sends out Brian’s ham radio callsign W6BY every 10 minutes (an FCC requirement) as well as a series of tones to help locate and identify the beacon.

N6VI Antenna and Spectrum Analyzer Demonstration

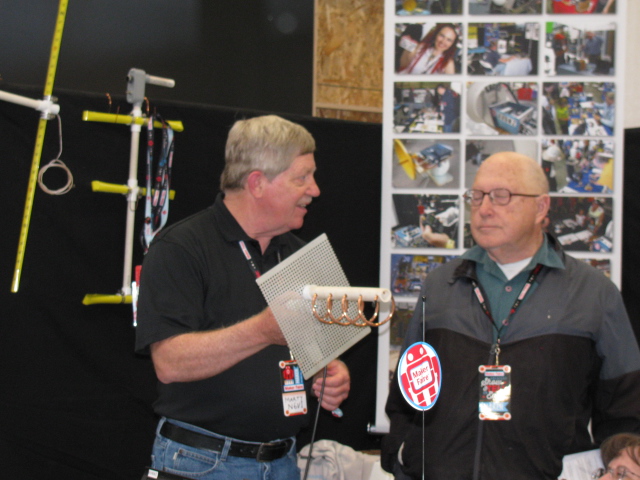

N6VI circular antenna

Marty Woll brought a portable spectrum analyzer and an assortment of hand-built antennas, including this corkscrew (circular polarized) antenna. A weak signal source was placed at the far end of the booth. By moving the antenna around, the spectrum analyzer shows frequency and signal strength. This can visually demonstrate antenna polarization and direction as well as frequency and harmonics.

KH6WZ 10 GHz Transmitter-Receiver System

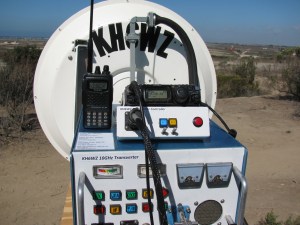

KH6WZ 2013 10GHz and Up Contest 005

The “anchor project” from past events is my 10 GHz transverter system. This station is used to demonstrate and explain frequency multiplication and division, frequency up-conversion (transmitting), down-conversion (receiving), polarization and antenna directivity to non-hams and even children.

W6DQ Software Defined Radio (SDR) Demonstration

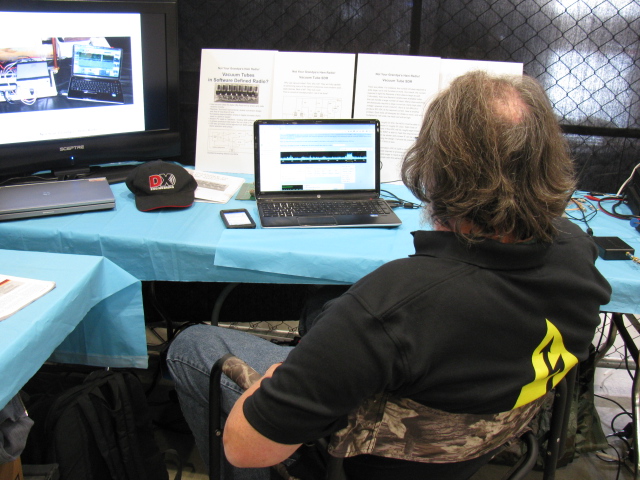

SDR demo by W6DQ KH6WZ photo

Dennis Kidder W6DQ, displayed his software defined radio (SDR). There were many questions about SDRs and many visitors were surprised to learn ham radio operators have this technology. But this is another example of what radio hams are using these days.

Virtual Air Traffic Control Receiving Station Using ADS-B – Automatic Dependent Surveillance – Broadcast

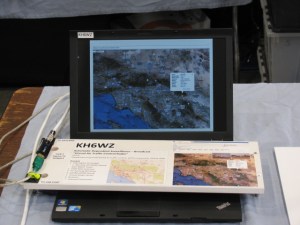

KH6WZ ADS-B demo

 ADS-B is the “next generation” air traffic control, to replace/supplement ground-based radar. Each aircraft transmits identification, GPS position, flight information and other data.

It is very easy to make an ADS-B receiving station. Here are the things needed:

  1. A digital TV (DVB-T) dongle – DVB-T is Digital Video Broadcast – Terrestrial, a digital TV standard used in Europe and other, non-North American locations
  2. Antenna for 1090 MHz, this can be built with cable TV coaxial cable and a few other items.
  3. Windows PC
  4. ADSB# (ADSB Sharp), a free application
  5. Virtual Radar Server, another free application
  6. Browser and Internet Connection

An inexpensive (less than $20 US) digital TV software defined radio in a USB dongle is used to decode ADS-B signals. Free downloadable applications for Windows PCs are used to decode and display the live air traffic broadcasts on a computer.

There is one important thing to know when buying your DVB-T dongle: The decoder and display programs work only with dongles using the Realtek RTL2832U with the RaefaelMicro R820T Tuner chip set.

More ADS-B Receiver Information

“Virtual Radar from a Digital TV Dongle,” QST, January 2014

ADSB# (SDR Sharp) – Download

Virtual Radar Server – Download

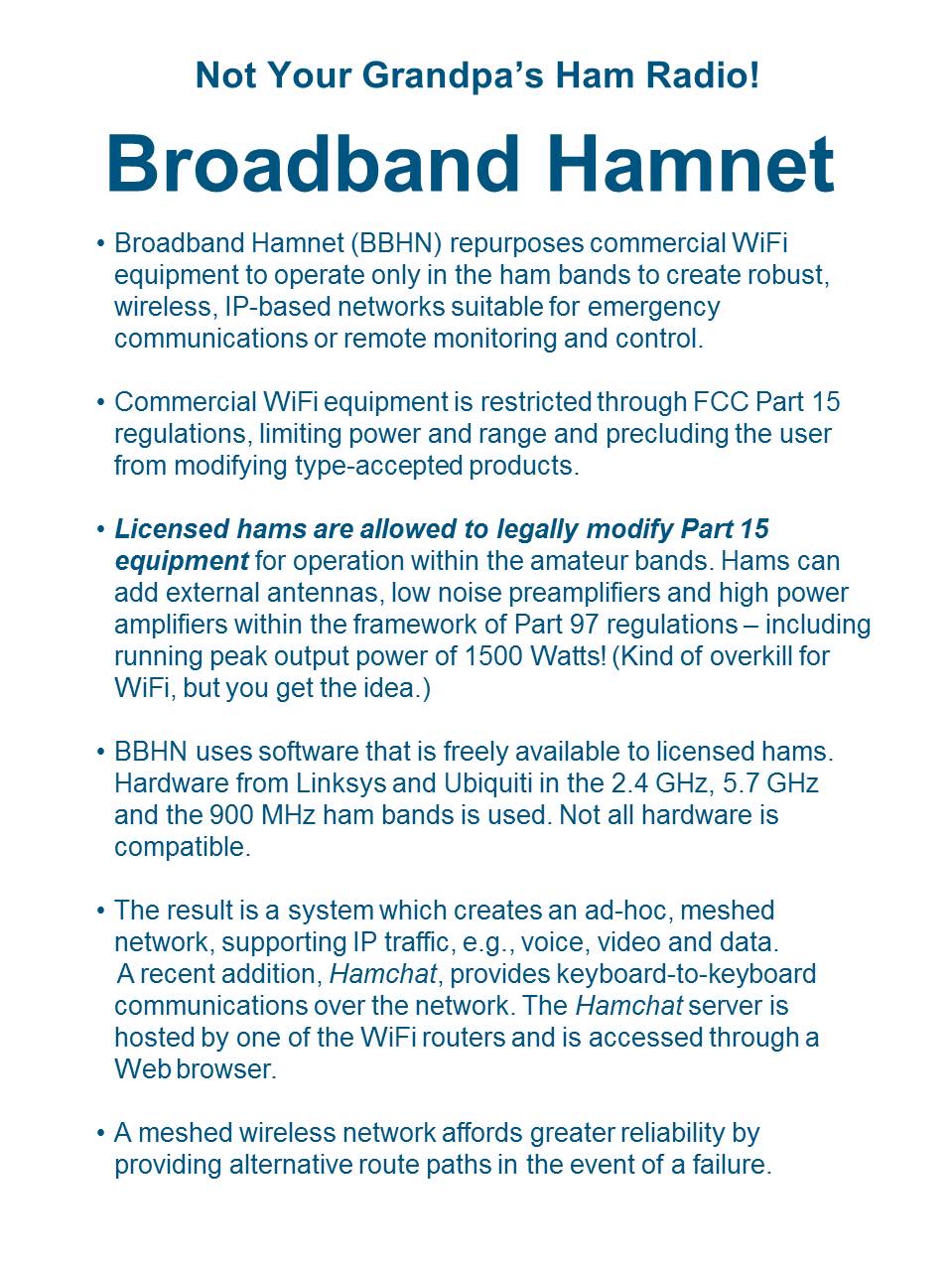

Broadband-Hamnet™ (formerly called HSMM-Mesh™) Demo

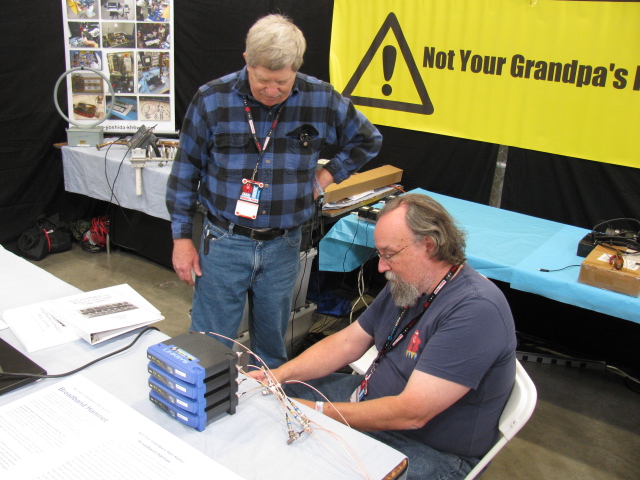

W6DQ assembling the BBHN demo

Dennis W6DQ (seated) assembling the BBHN network demo as Marty N6VI asks a few questions about the network.

Broadband Hamnet (BBHN) re-purposes commercial Wi-Fi equipment to operate only in the ham bands to create robust, wireless, IP-based networks suitable for emergency communications or remote monitoring and control.

Commercial Wi-Fi equipment is restricted through FCC Part 15 regulations, limiting power and range and precluding the user from modifying type-accepted products.

However, licensed ham radio operators are legally allowed to modify Part 15 devices to make them operate in the FCC Part 97 rules for ham radio operation. Larger antennas, higher power, adding receiver pre-amplifiers and other techniques are allowed for experimentation.

The result is a system which creates an ad-hoc, meshed network, supporting IP traffic, e.g., voice, video and data. A meshed wireless network affords greater reliability by providing alternative route paths in the event of a failure.

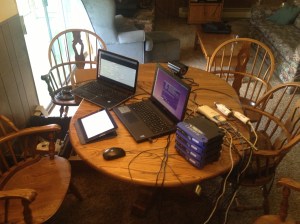

Wires for Wireless wayne yoshida tech writer wires for wireless

Dennis says there sure a lot of wires needed for wireless networking.

Note: There are two systems for amateur radio wireless networking – Broadband HamNet (BBHN) and Amateur Radio Emergency Data Network (AREDN).  If you are interested in experimenting with this, check with others in your area to see what they are using.

10 GHz / 24 GHz Dual Transmitter-Receiver System

wayne yoshida Joel KD6W 10-24 GHz rig

Joel Wilhite KD6W constructed a 10 GHz and 24 GHz dual-band transverter system for portable use. It consists of various modified modules from several sources.

We encourage kids and parents to talk to each other using our home-built radios. It helps make things more interesting than just looking at things.

Type 65 Coupe Project Update: Preparing for Engine Installation   1 comment

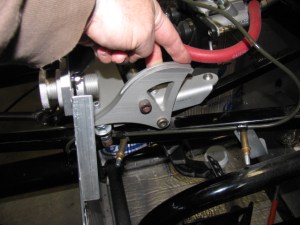

IMG_2614 IMG_2615

I spent the last two weekends in the garage, getting back to the Coupe Project. It was nice and relaxing to lay on the creeper, under the chassis and working with tools again.

I had to modify the chassis in the pedal box area to allow more clutch pedal movement. This is a known issue in the Roadster forums, but not so much in the Coupe forums. This happened when Factory Five Racing changed the Wilwood pedal box – the old version would actually break. The new and improved pedal box moves the clutch pedal arm over to the left by about an inch or so, and the arm hits a brace, limiting pedal travel.

When the modification is done before the pedal box is bolted into place, it is a simple chore to make two cuts, chopping a small triangular cut into the frame member. This can be done with a reciprocating saw or maybe power jigsaw.

However, if the modification must be performed after the pedal box is bolted into place, the tube must be accessed from below, in an awkward angle. A small grinder tool would be ideal for this, but the only tool I have that will fit the space and the angle is a Dremel tool. It took me two half-day sessions to do this.

IMG_2626 IMG_2625

In the pictures above you can see the half-moon shape cutout I had to make. This is a view from under the chassis, looking up from the creeper. This will be painted black later. The tube looks normal from the top, so that is good. And clutch pedal travel is doubled, so free play adjustment range should be much better.

Since the brake system is installed, filled and bled, I removed the Clekos and riveted the lines in place. I changed several P-clip anchor points so it complies with my “routing and clipping manual” from the office. Unfortunately, I followed some other builders’ clipping, and mounted several p-clips upside down. Most of them will be under the car, and might be hidden from view when the car is finished. But I know they are upside down.

Here is a picture of how the clips should be mounted. This is the X-member in the front of the chassis.

IMG_2624

Looks like I didn’t take a picture of the riveted clips. I will post them later.

Next, I made a bracket to support the ECU for the MSD Atomic fuel injection system for my 302. This plate will secure the ECU and provide strain relief for the cables going in and out of the unit. It is on a plate so it can be easily removed if I have to work on the wiring or the ECU later. It is mounted with 1/4-20 stainless steel studs and nylon lock washers. It was raining so I was not able to paint this plate. Will have to do that at the next build session.

The passenger side footbox is on the left. Three stainless steel Allen head screws come through the wall and into the passenger box. The center photo shown the ECU engine cable going into the engine bay, and the right photo shows the MSD computer and plate inside the passenger footbox. Carpet will cover the interior, so a carpeted cover will be made to hide the ECU and wires when the car is finished.

I am also laying out the air conditioner system components on the chassis. I have to make several brackets and small boxes to mount the A/C components on the chassis.

As I was doing this work, I took another look at the battery box mentioned in an earlier post. It is installed with clecos so it can be removed. I think I want to mount the battery above the passenger footbox. Two reasons for this:

First, it will shorten the battery cables, decreasing the voltage drop.

Second, the “factory location” for the battery – in the rear center – blocks the rear axle pumpkin. So, when I have to change the oil or make adjustments, the battery must be disconnected and the battery and the box must be removed. Sounds like a painful procedure for a simple maintenance chore.

I will make a mock-up of this in my next build session. Stay tuned . . . .





Christmas Sailboat D25 Wins Again at the 107th Newport Beach Christmas Boat Parade   Leave a comment

photo by Bleu Cotton Photography

photo by Bleu Cotton Photography

For the 12th consecutive year, skipper Peter Barbour and Christmas boat D25 earns a first place victory in the 2015 Newport Beach Christmas Boat Parade. The décor at D25 for 2015 features a Christmas dolphin guiding a sleigh filled with gifts and pulled by a giant seahorse.
Click here to see all the 2015 Newport Beach Boat Parade Winners

Here are D25’s Records
2015: Best Sailboat
2014: 1st Place Animation & Special Effects
2013: 1st Place Animation & Special Effects
2012: Best Sailboat
2011: 1st Place Best Humor & Originality
2010: Best Boat Under 30 Feet
2009: 1st Place Best Animation & Special Effects, Theme: Joys of Christmas Toys
In 2009, D25 demonstrated one of the most complex designs in the series. The entry included a matrix of colored ornaments, made with hundreds of individual bulbs. The matrix enabled the computer controller to make an amazing array of “bouncing ball” images that danced across a black background.
2008: 1st Place Best Humor & Originality, Theme: Tropical Island Cheer – Lanterns to Lights
D25 for 2008 was inspired by the origins of the Newport Beach Christmas Boat Parade on July 4, 1908, when John Scarpa, a gondolier, led a parade with eight fellow small boat operators.
2007: 1st Place Best Humor & Originality
Theme: Surf’s Up – Light Wave: Surf’s Up on D25 features over 5,025 lights illuminating a holiday surfer’s dream. In the middle of November, Original Productions, Inc. asked Peter to appear on a documentary on intense holiday decorations for TLC: The Learning Channel. The episode “More Crazy Christmas Lights” premiered on December 8, 2007.
2006: Best Boat Under 30 Feet
Theme: North Pole Holiday Magic
2005: 1st Place Best Humor & Originality
Theme: Classic Christmas. D25’s second design was inspired by a classic Christmas living room scene. A large decorated Christmas tree with presents stacked below the bows and a star atop, red brick fireplace with a roaring fire and stockings hung below a mantle.
2004: 2nd Place Best Use of Lights and Animation
Theme: Santa’s Sailing Sled. D25’s debut design was inspired by the idea of Santa’s sailing sled being borrowed by a mischievous elf.

More information on the Newport Beach Christmas Boat Parade

Not Your Grandpa’s Ham Radio at San Diego Maker Faire October 3 – 4, 2015   Leave a comment

UPDATE — See what Dennis W6DQ and I did for the San Diego Maker Faire!



MakerFaireFlyer1-San Diego

This is our fourth consecutive year as Makers. The 2015 SD Maker Faire team is Dennis W6DQ and Wayne KH6WZ

Our mission is to change the image of ham radio, making it both contemporary and chic in a hi-tech sort of way. We also want to emphasize how ham radio can be used for science and technology education and a possible career path for youngsters.

Amateur, or ham radio has always included teaching-learning-making-modifying-hacking and networking (making new friends) traditions for over a hundred years. We want to remind people this “new Maker Movement” is not really a new idea. Read my LinkedIn Publish post called “The Original Makers” to learn more about this.

We also want to show everyone that ham radio technology changes with the times, and continues to include both past and present to accomplish one thing: Creating ways to communicate voice and data over the ether, without wires.

Here are some of the projects on display – stay tuned for more stories and pictures after the event!



By the way – here are 65 reasons why ham radio continues to survive – and possibly thrive – in a world of instant, global communication fro everyone:

65 Great Things About Ham Radio

CQ magazine celebrates its 65th anniversary by making a list of 65 great things about ham radio. Ham radio can be considered one of the earliest forms of “social media,” “networking” and “making.” Items in italics can be considered “life lessons.”

1. It works when nothing else does
2. It makes you part of a worldwide community
3. The opportunity to help neighbors by providing public service and emergency communications
4. Some of the nicest people you’ll ever meet
5. Some of the smartest people you’ll ever meet
6. Some of the most interesting people you’ll ever meet
7. Some of the most generous people you’ll ever meet (along with some of the cheapest!)
8. Lifelong friendships
9. Friends around the world (including those you haven’t met yet)
10. The opportunity to go interesting places you might not otherwise go to
11. The opportunity to do interesting things you might not otherwise get to do
12. The opportunity to expand your knowledge of geography
13. The opportunity to expand your knowledge of earth and space science
14. Practical uses for high school math
15. Practical uses for high school physics
16. A good way to practice a foreign language
17. A good way to keep in touch with faraway friends and relatives
18. A good way to get driving directions when visiting someplace new (with or without GPS)
19. A good way to find the best places to eat when visiting someplace new (with or without GPS)
20. Finding “non-touristy” off-the-beaten-path places to stay, eat, visit, etc.
21. A good way to learn about virtually any topic
22. A good way to bridge the generation gap
23. A good way to keep tabs on elderly/infirm people
24. People named Joe (Walsh, Rudi, Taylor)
25. How many of your non-ham friends have actually talked to someone in some remote place such as Cape Verde or the Seychelles?
26. How many of your non-ham friends might have talked to an astronaut aboard the space station?
27. How many of your non-ham neighbors might have a satellite uplink station in their basements—or in the palms of their hands?
28. How many of your non-ham neighbors might have a TV studio in their garage?
29. What other hobby group has designed, built, and had launched its own fleet of communication satellites?
30. Where else can you play with meteors?
31. Moonbounce
32. Informal way to improve technical skills
33. Informal way to improve communication skills
34. Introduces a variety of career paths
35. Offers unparalleled opportunities for career networking
36. Opportunities for competition in contesting and foxhunting
37. A good way to collect really cool postcards from around the world (despite the growth of electronic confirmations)
38. Nearly endless variety of different things to do, on and off the air
39. Hamfests
40. Dayton
41. Field Day
42. Working DX
43. Being DX
44. DXpeditions
45. Contesting
46. Award-chasing
47. Double-hop sporadic-E
48. Worldwide DX on 6 meters (once or twice every 11 years) [The current extended sunspot minimum has shown that mechanisms other than F2 propagation can offer intercontinental DX on the “magic band” at any point in the solar cycle.]
49. Tropospheric ducting
50. Gray-line propagation
51. TEP, chordal hops, etc.
52. Getting through on CW when nothing else will
53. Unexpected band openings
54. Building your own gear
55. Using gear you’ve built yourself
56. Operating QRP from some remote location
57. Experimenting with antennas
58. Working DX while mobile or while hiking
59. Experimenting with new modes and new technology
60. The opportunity to help build an internet that doesn’t rely on the internet
61. DXing on your HT via IRLP and Echolink
62. Contributing to scientific knowledge about propagation
63. Keeping track of other people’s GPS units via APRS
64. Ham radio balloon launches to the edge of space, and as always…
65. Reading CQ!

Take a look at the CQ magazine website to find more interesting things about ham radio.

October Things To Do – San Diego, CA   Leave a comment

October 3 and 4: Maker Faire® San Diego!

Wayne Yoshida Technical Writer-ExhibitSheet

Maker Faire San Diego is October 3 and 4, 2015, from 10 AM to 6 PM at Balboa Park. Our “Not Your Grandpa’s Ham Radio” theme will feature some new projects as well as some of the old, but popular demonstrations from previous Maker Faire events. Pictured below is a project under construction, I hope to have it completed for this event. It is a homemade 1090 MHz collinear (vertical) antenna that will be part of an air traffic control monitoring station using a software defined radio (SDR).

wayne yoshida KH6WZ tech writer ADS-B antenna





October 15 to 18: Microwave Update (MUD)!

wayne yoshida MUD 2015 Banner

Microwave Update, or MUD, is a yearly technical conference for amateur radio experimenters making, modifying, hacking, building, testing and using the 1,000 MHz and up radio bands. Participants from all over the world gather at these events to share information about operating techniques, radio propagation and radio station equipment. One aspect of this event is the buying, selling and trading of surplus parts and assemblies for these frequency bands, since some items may be difficult to procure in some areas. But perhaps the best thing about MUD is socializing and making new friends from all over the world to discuss common interests and goals.

Preparations for the San Diego MUD are still under way. Last weekend, a few San Bernardino Microwave Society (SBMS) members gathered at Dave’s lab to sort and package some prize and give-away items for the event.

w yoshida MUD San Diego 2015 prize sorting2
w yoshida MUD San Diego 2015 prize sorting1

Left to right: Dave WA6CGR, Rein W6SZ, Pat N6RMJ and Jim KK6MXP sorting and packing some microwave frequency prizes and give-ways.

I hope to see you at any or both of these events!







Microwave Update 2015 in San Diego is October 15 to 18!   Leave a comment

wayne yoshida MUD 2015 Banner



More information on Microwave Update

Update: Important Deadlines and Speaker Schedule for the Amateur Radio Microwave Update (MUD) 2015   Leave a comment

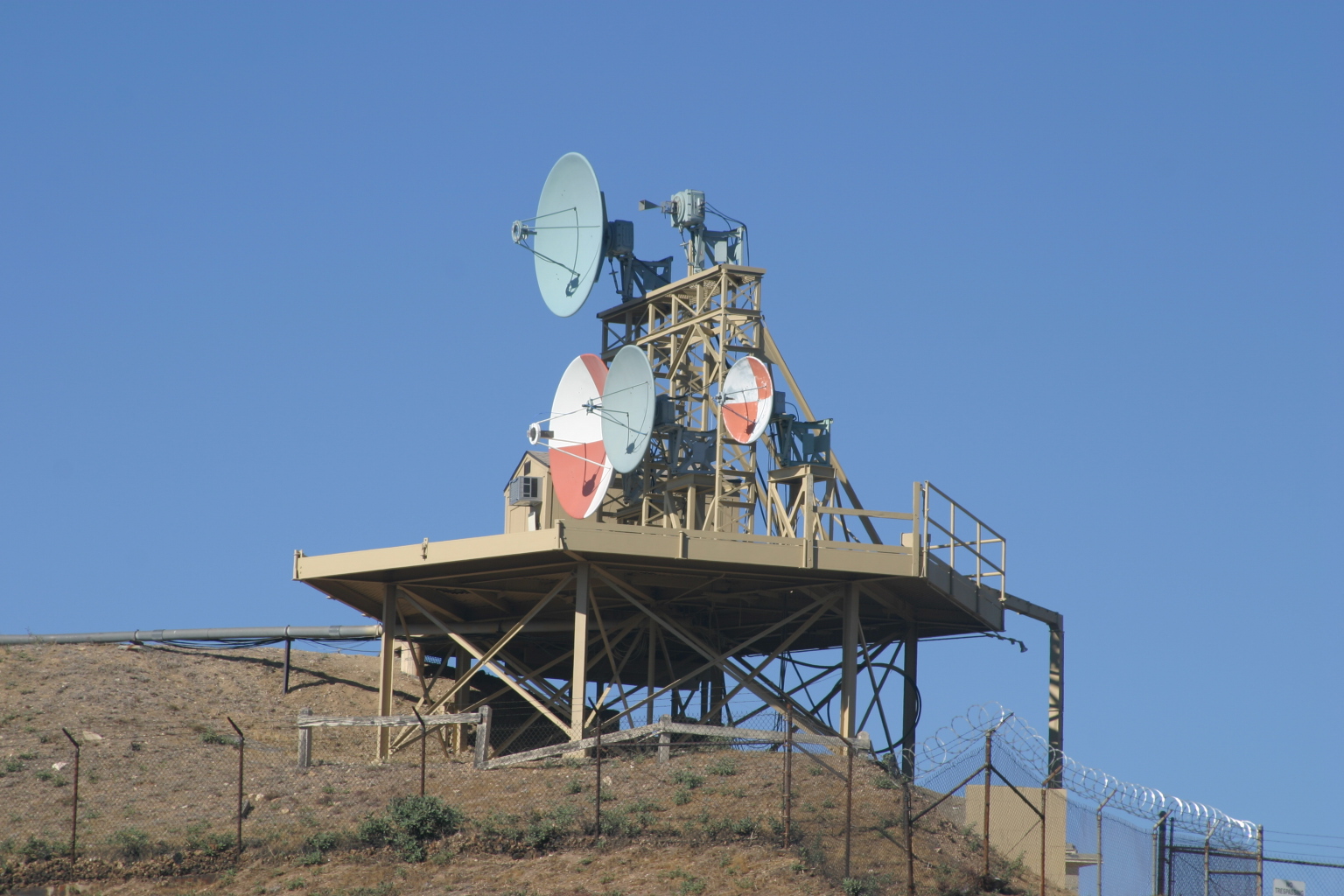

IMG_4478-SecretSite51-DishCluster2



Microwave Update (MUD), the international conference on Amateur Radio experimentation above 1,000 MHz, reminds attendees and participants the deadline for papers is September 1, 2015. The event is October 15 to 18, 2015.

Article/Paper Deadline
There is still time to create and submit an article or paper on your latest microwave project, technique or technology update.

Paper guidelines are posted on the official 2015 Microwave Update website, at
Technical Paper Guidelines and Deadlines

Speaker Schedule
The preliminary speaker schedule is posted at
MUD 2015 Speaker Schedule

Hotel Information – Discount Rates Deadline Approaches!
Take advantage of the hotel discount rate which expires on September 14, 2015. Be sure to mention you will be attending the Microwave Update (MUD).

Crowne Plaza San Diego
2270 Hotel Circle North
San Diego, CA 92108 USA
Phone: +1-888-233-9527

More MUD 2015  hotel information:

MUD 2015 Hotel Info

For more information and the latest updates on MUD 2015, go to:
Microwave Update 2015 San Diego, CA

About the San Bernardino Microwave Society
The SBMS, founded in 1955, is a non-profit technical organization and Amateur Radio club and dedicated to the advancement of communications above 1,000MHz. Affiliated with the ARRL, the SBMS membership includes over 90 Amateurs from Hawaii and Alaska to the East Coast and beyond. Meetings are held the first Thursday of each month at 7 pm at the American Legion Hall, 1024 Main St., Corona, CA. For more SBMS information, go to SBMS

About the Microwave Group of San Diego
The Microwave Group of San Diego is an informal association of Radio Amateurs interested in the frequencies above 1000 MHz. A net is held on the air each Monday night, except the third Monday of the month, on the Palomar Amateur Radio Club Repeater, 146.730 (-0.600), (tone 107.2) at 9:00 PM. For more information, go to
MGSD
