Arduino Radar Shield at Maker Faire Bay Area 2014   Leave a comment

University of California, Davis Engineering Project at Maker Faire Bay Area 2014

IMG_0090 kh6wz radar experiment UCDavis

This radar system operates at 2GHz (S-band). The Arduino stack consists of a radio front end, controlled by an Ardunio Uno and signal processing is performed using an Arduino Due. A Bluetooth link moves the data from the radar system to the notebook computer, where the radar information can be seen using a “waterfall” visual display.

IMG_0086 - kh6wz - UCD radar - UNO front end

IMG_0087 - kh6wz UCD radar shield

IMG_0132 - kh6wz - Dr Leo Liu - Daniel - David UCD DART Lab


The DART lab is located in Kemper Hall on the UC Davis campus and is led by Dr. Xiaoguang “Leo” Liu, pictured at left. Daniel (center) and David on the right demonstrated the 2GHz radar system to the Maker Faire visitors. For more information on the UC Davis Engineering programs, visit
The Davis Adaptive RF Technology (DART) Lab

UC Davis College of Engineering Electrical and Computer Engineering

2014 UC Davis Picnic Day

Not Your Grandpa’s Ham Radio
Maker Faire Bay Area 2014

The Paella Feast at Maker Faire Bay Area 2014!   Leave a comment

Every year, the Maker Faire hosts a paella dinner for the Makers. This year, the event was sponsored by Liquid Wrench. Here are some images, and you can watch the Paella video on channel KH6WZ. . .

Gerard’s Paella feeds 2,500 people very quickly!

IMG_0038 kh6wz Maker Faire 2014 - Paella just starting to cook



IMG_0041 - kh6wz Paella simmering Maker Faire 2014



IMG_0043 kh6wz - paella MF 2014



IMG_0069 kh6wz paella ready to serve

The Software Defined Radio (SDR) at Maker Faire Bay Area 2014   Leave a comment

Not Your Grandpa’s Ham Radio

Dennis W6DQ displayed his Flex 1500 software defined radio with 10 GHz and 24 GHz transverters. There were many questions about SDRs and many visitors were surprised to learn ham radio operators have this technology. But this is another example of what radio hams are using these days. The system Dennis showed is actually three systems in one: The SDR, which is being used as the “intermediate system,” and transverters (transmitter-receiver-converters) for 10 GHz and 24 GHz microwave ham radio. The posters briefly explain the transverter system:

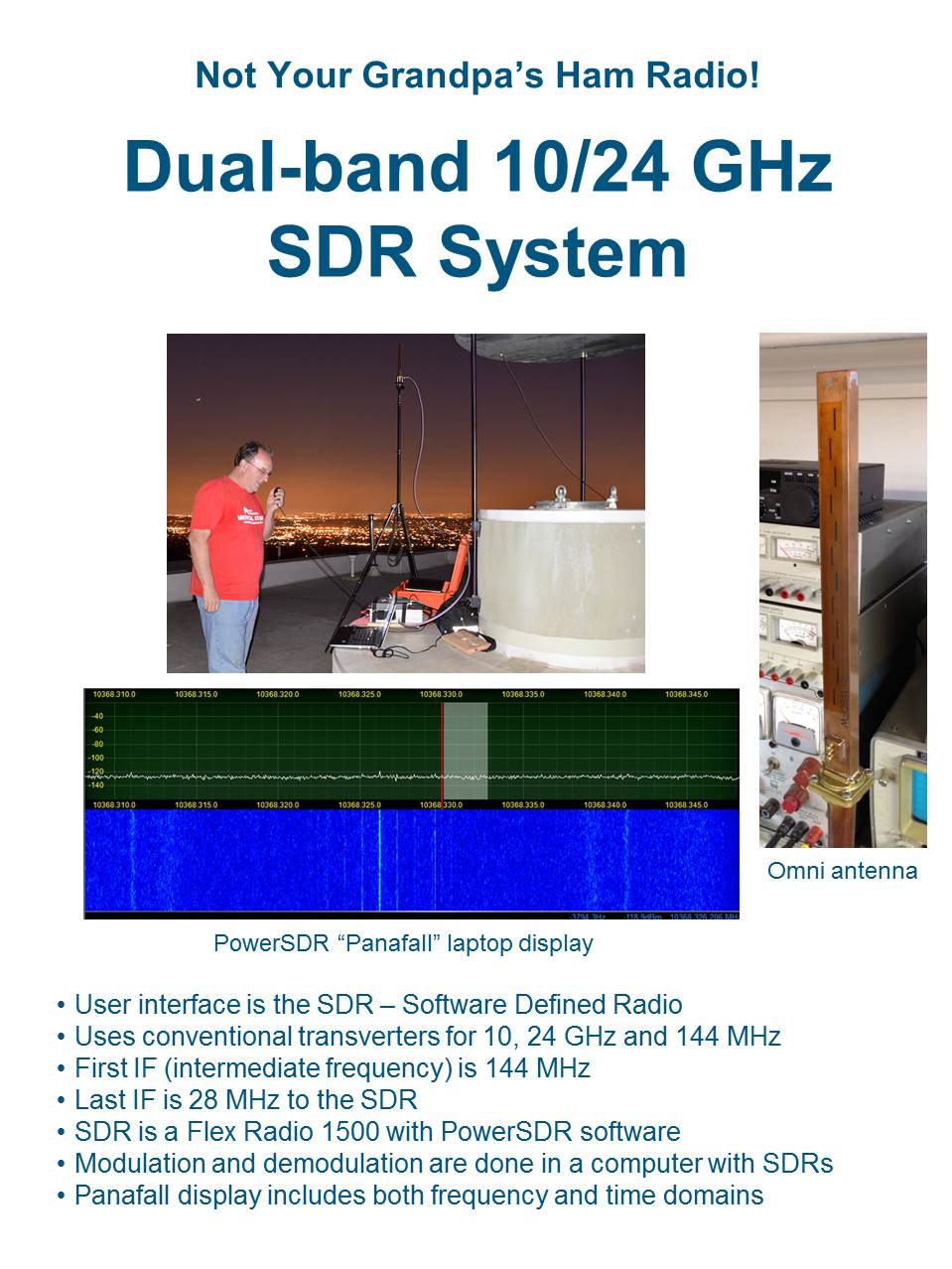

Dual band 10-24 GHz SDR 1

Dual band 10-24 GHz SDR 2

IMG_0016 - kh6wz - W6DQ Maker Faire 2014



The SDR is a Flex-1500, made by FlexRadio Systems

2014 Maker Faire Bay Area – Not Your Grandpa’s Ham Radio   Leave a comment


IMG_0247 KH6WZ balloon APRS parts


APRS: Automatic Packet Reporting System – and High Altitude Ballooning

Someone asked if it would be possible to track a high altitude balloon using ham radio. It is possible to track a vehicle, aircraft or person using the amateur radio application called APRS, the automatic packet reporting system. Basically, the system consists of a two-way radio (usually for the 2m ham band), a GPS receiver, a modem to interface/control the data to and from the GPS, and an antenna for the radio and the GPS.

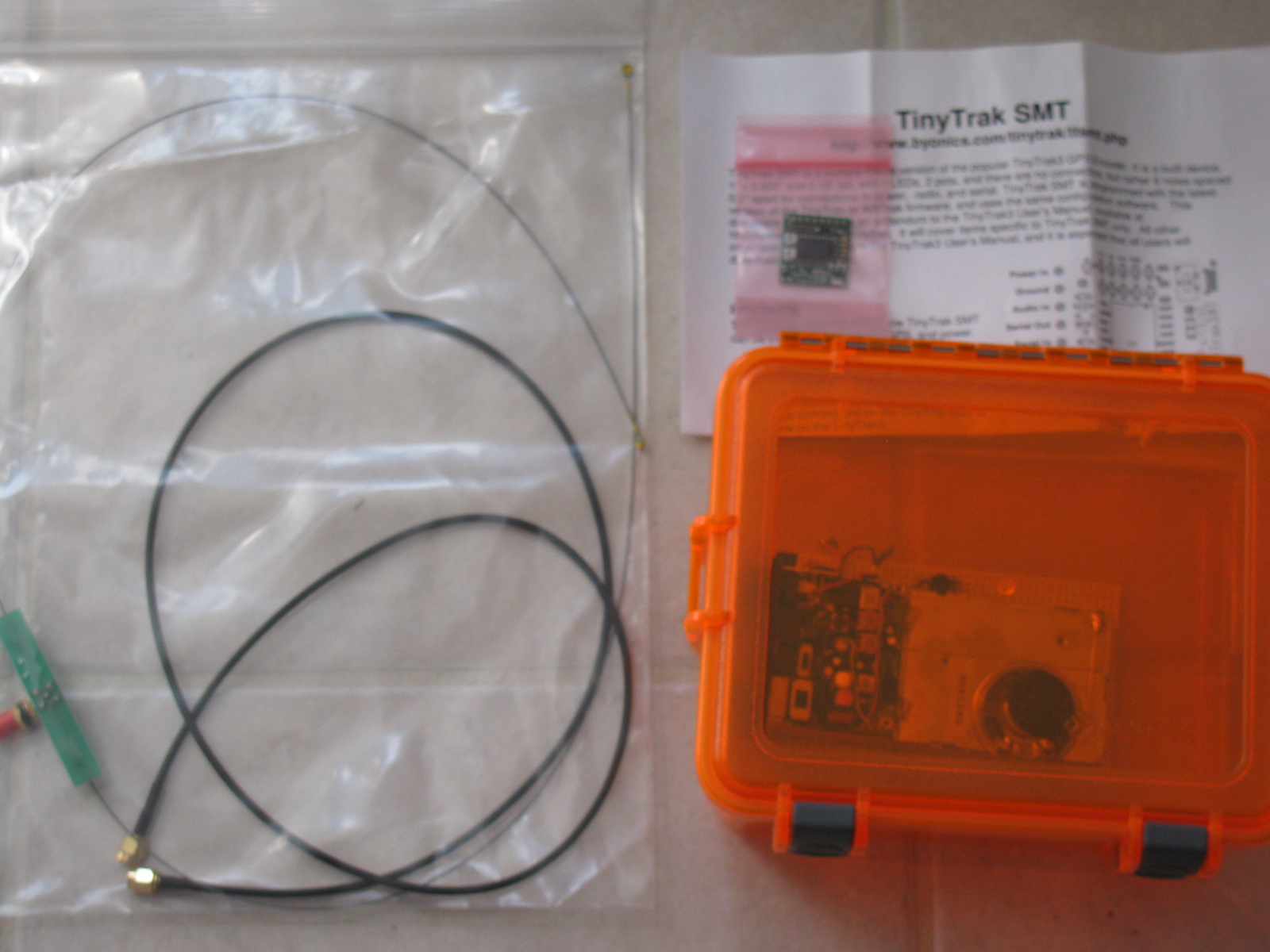

By coincidence, I am collecting parts for such a system, see the photo above. The radio antenna is on the left –  it is a piano wire dipole for the 2 meter ham band. On the upper right is a Byonics Tiny Trak SMT – the interface between the two-way radio and the GPS. Inside the orange plastic box is an old 2m handie-talkie, with its cabinet parts and battery pack removed. Not shown in the picture are the other ingredients, which include a tiny GPS module and the video cameras for Amateur Television (ATV).

KH6WZ - W6DQ APRS poster


KH6WZ - W6DQ APRS poster 2

Here are some links I used in my research.
Byonics – Makers of the Tiny Trak series of APRS beacons

Amateur Radio High Altitude Ballooning

Sparkfun – High Altitude Balloon Launch

Low-cost Near Space Without HAM Radios or Cellphones

Breaking the Amateur Radio Balloon Altitude Record

BEAR (Balloon Experiments with Amateur Radio)

Watch this space for more Bay Area Maker Faire stories and pictures!
